PP-ETS-NR
Overview
The PP-ETS-NR is a compact yet powerful Ethernet to UART converter.
This module acts as a protocol converter that transmits data sent from serial devices as TCP/IP data and converts TCP/IP data received over the network back into serial data for the serial devices.
Features
• UART to Ethernet protocol conversion
• Supports Modbus TCP and Modbus RTU/ASCII protocol conversion
• Enables easy Ethernet integration for existing serial devices
• Supports 10/100Mbps Ethernet and serial speeds up to 921kbps
• Password protection for device search
• Supports UART Serial AT Commands
• Module configuration via Configuration Tool
• Module configuration via Web Configuration Tool
• Industrial-grade operating temperature: -40 to 85°C
• ESD protection for enhanced reliability
• Built-in unique MAC address
Interface
- MDI : It is connected to a transformer or an RJ-45 with an integrated transformer
Please refer to the reference schematic.
- LINK/ACT LED : It is connected to the LEDs of the RJ-45.
- RSTn : Operates in Active Low mode.
- P_SEL : On RESET or power-on, operates as TTL/RS-232 when LOW, or RS-485/422 when HIGH.
- UART : Tx, Rx, RTS, CTS
- UART_RTS : On RESET or power-on, operates as RS-422 if RTS is GND, or RS-485 if RTS is floating.

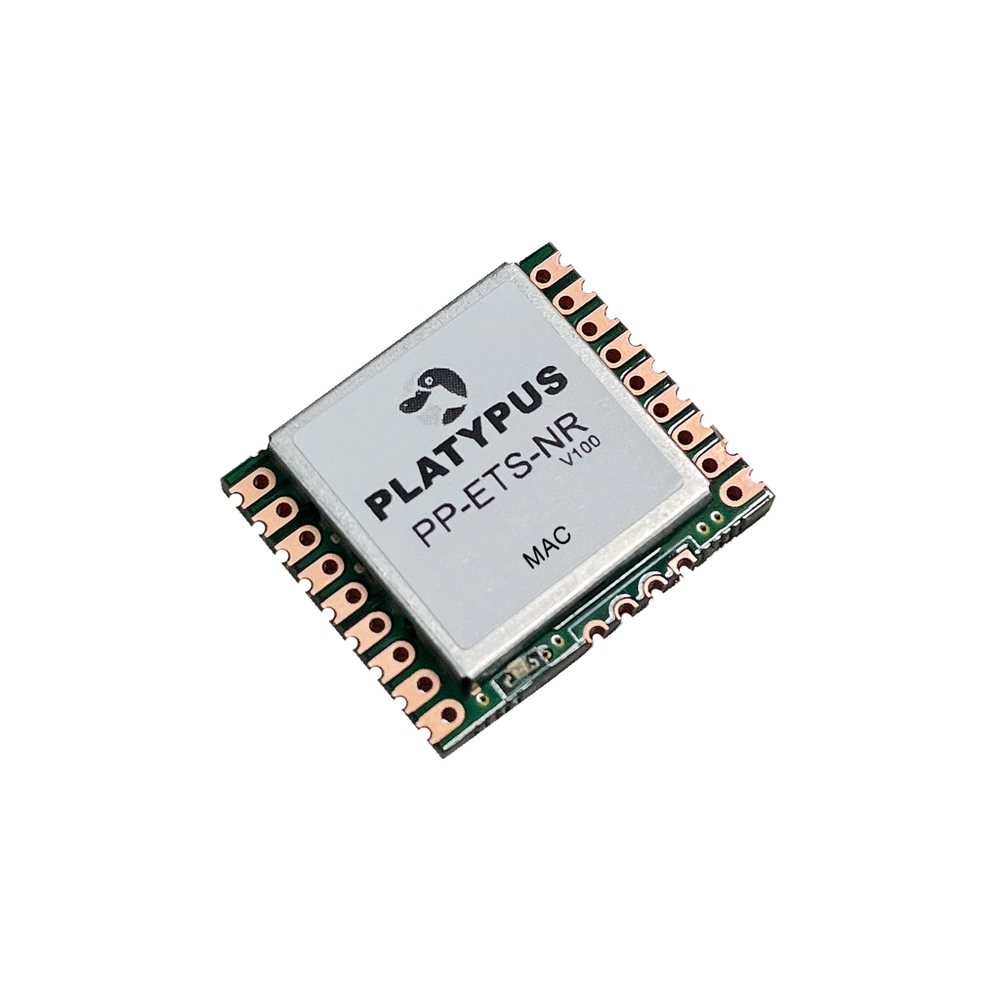

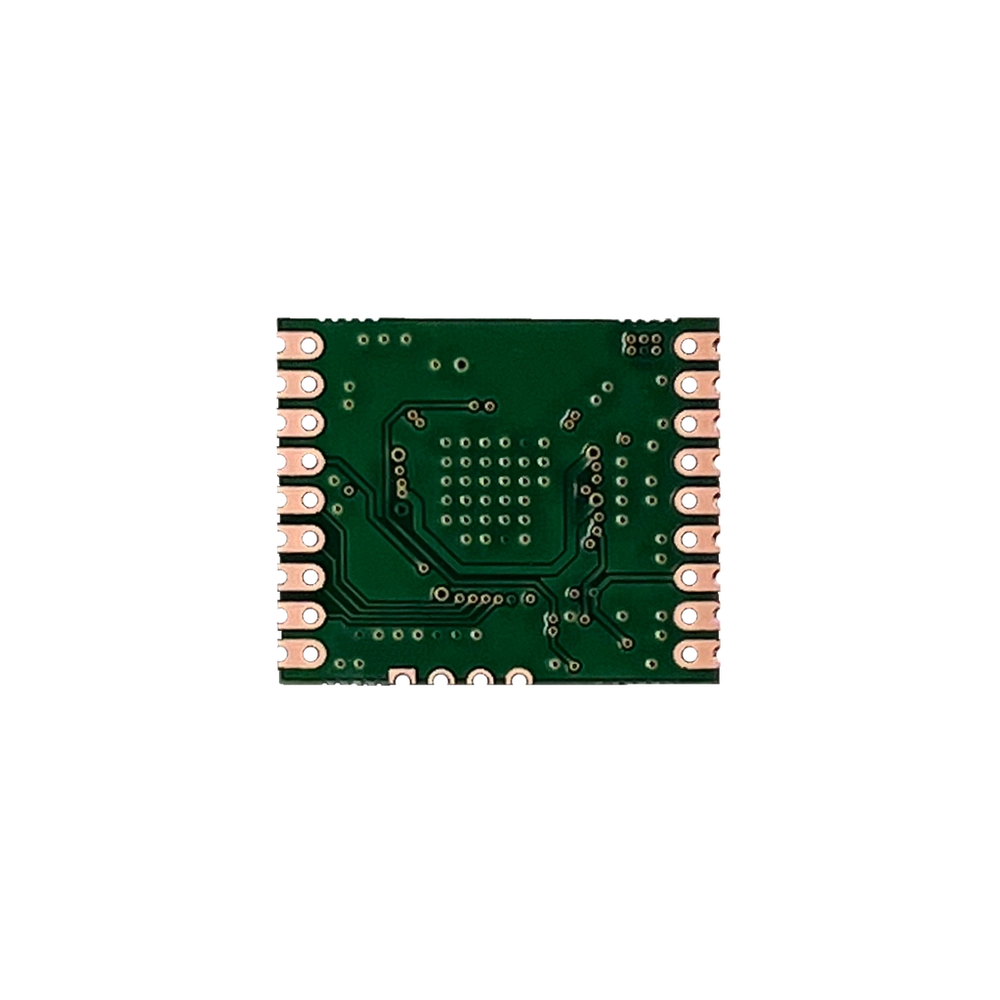

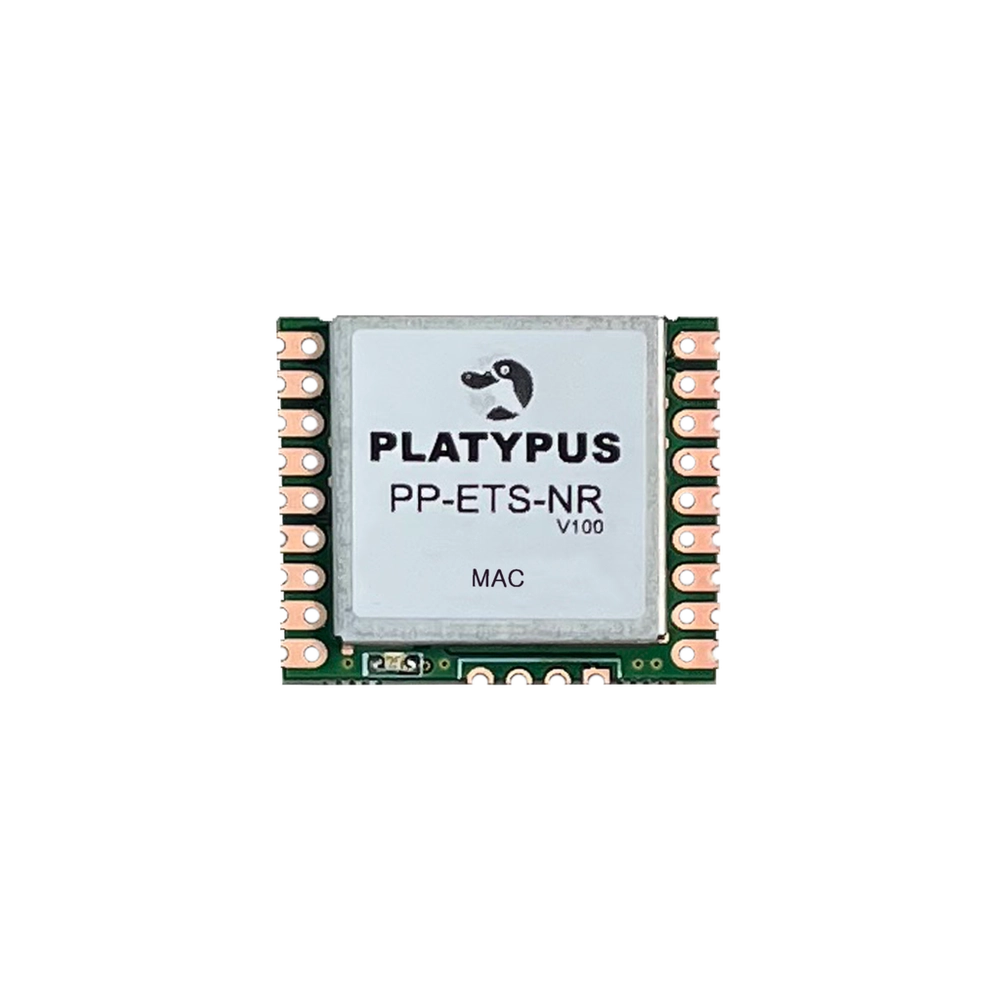

Front/Back
Control
You can control the module without any installation program.
Control is possible via Serial/Ethernet.
The module can be controlled using a Configuration Tool through Ethernet-TCP.
Additionally, it can be controlled via AT-Command through Serial.
