PP-Ethernet-RS232-PoE
Overview

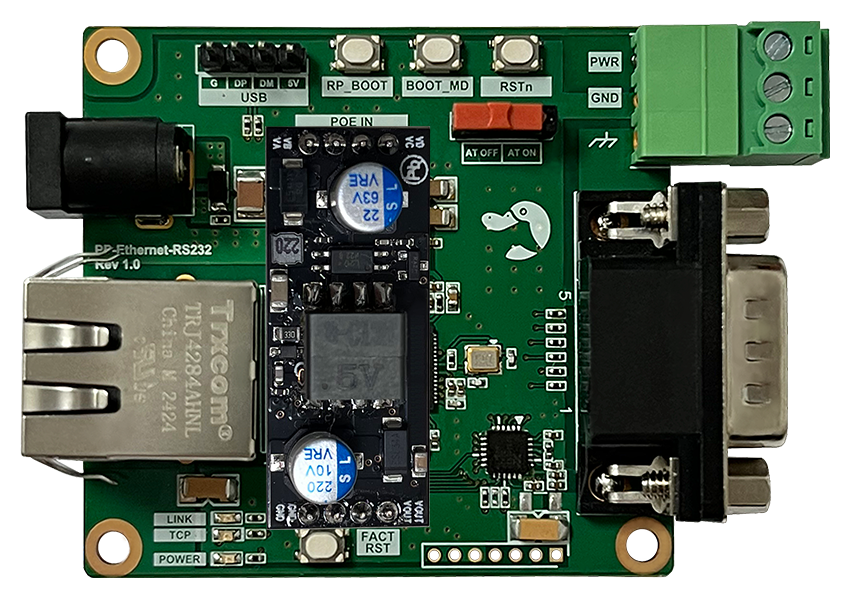

PP-Ethernet-RS232 is a compact yet powerful Ethernet-to-RS-232 converter. It is equipped with WIZnet's powerful Ethernet conversion chip, the W55RP20.
This module functions as a protocol converter, transforming data transmitted from serial devices into TCP/IP data for network transmission and converting TCP/IP data received over the network back into serial data for the serial devices. Additionally, it allows for easy module control with simple pin settings. Since it comes preloaded with powerful firmware, everything is ready to go upon installation. You only need to configure the IP using a tool, and it's ready for immediate use.
Features
- RS-232 to Ethernet based on W55RP20( RP2040 MCU )
- Includes W55RP20 and magnetic RJ45 modular jack
- 10/100Mbps Ethernet & Up to 230kbps serial speed
- Status pins: PHY link status / TCP connection status
- MQTT, Modbus Available
- Serial signal
RS-232 : RX, Tx, RTS, CTS - Optional PoE
PoE modules can be installed to operate PoE - USB, SWD debugging support
Control
You can control the module without any installation program.
Control is possible via Serial/Ethernet.
The module can be controlled using a Configuration Tool through Ethernet-TCP.
Additionally, it can be controlled via AT-Command through Serial.
