PP-Ethernet-Serial-WD
Overview
PP-Ethernet-Serial-WD is a compact yet powerful Ethernet-to-UART converter. It is equipped with WIZnet's powerful Ethernet conversion chip, the W55RP20.
This module functions as a protocol converter, transforming data transmitted from serial devices into TCP/IP data for network transmission and converting TCP/IP data received over the network back into serial data for the serial devices. Additionally, it allows for easy module control with simple pin settings. Since it comes preloaded with powerful firmware, everything is ready to go upon installation. You only need to configure the IP using a tool, and it's ready for immediate use.
Features
• UART to Ethernet protocol conversion
• Supports Modbus TCP and Modbus RTU/ASCII protocol conversion
• Enables easy Ethernet integration for existing serial devices
• Supports 10/100Mbps Ethernet and serial speeds up to 921kbps
• Password protection for device search
• Supports UART Serial AT Commands
• Module configuration via Configuration Tool
• Module configuration via Web Configuration Tool
• Industrial-grade operating temperature: -40 to 85°C
• ESD protection for enhanced reliability
• Built-in unique MAC address

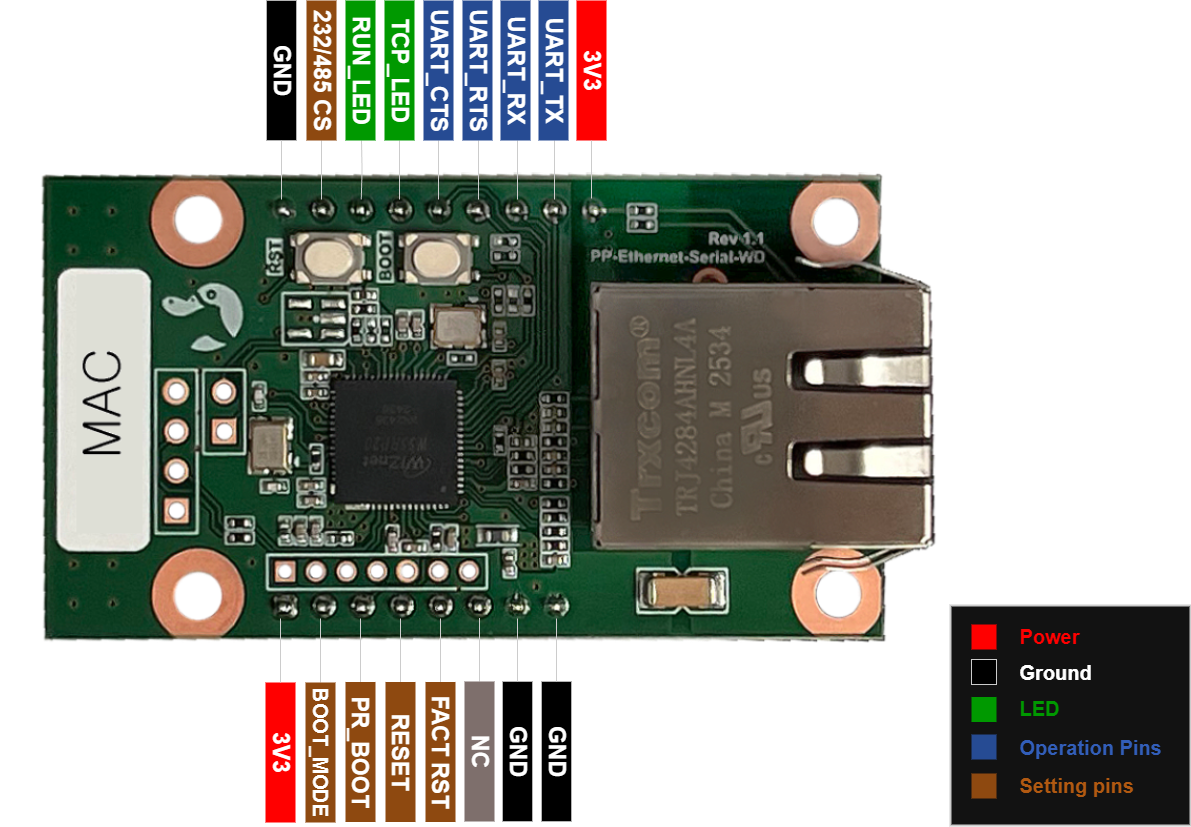

Interface

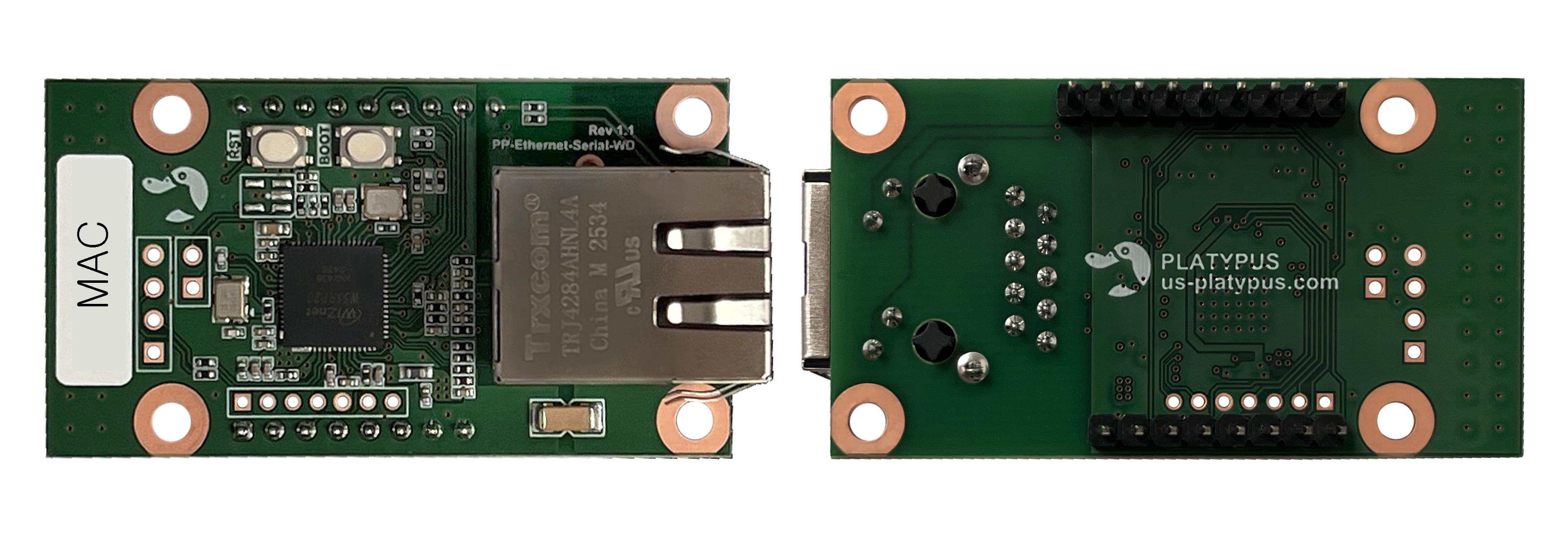

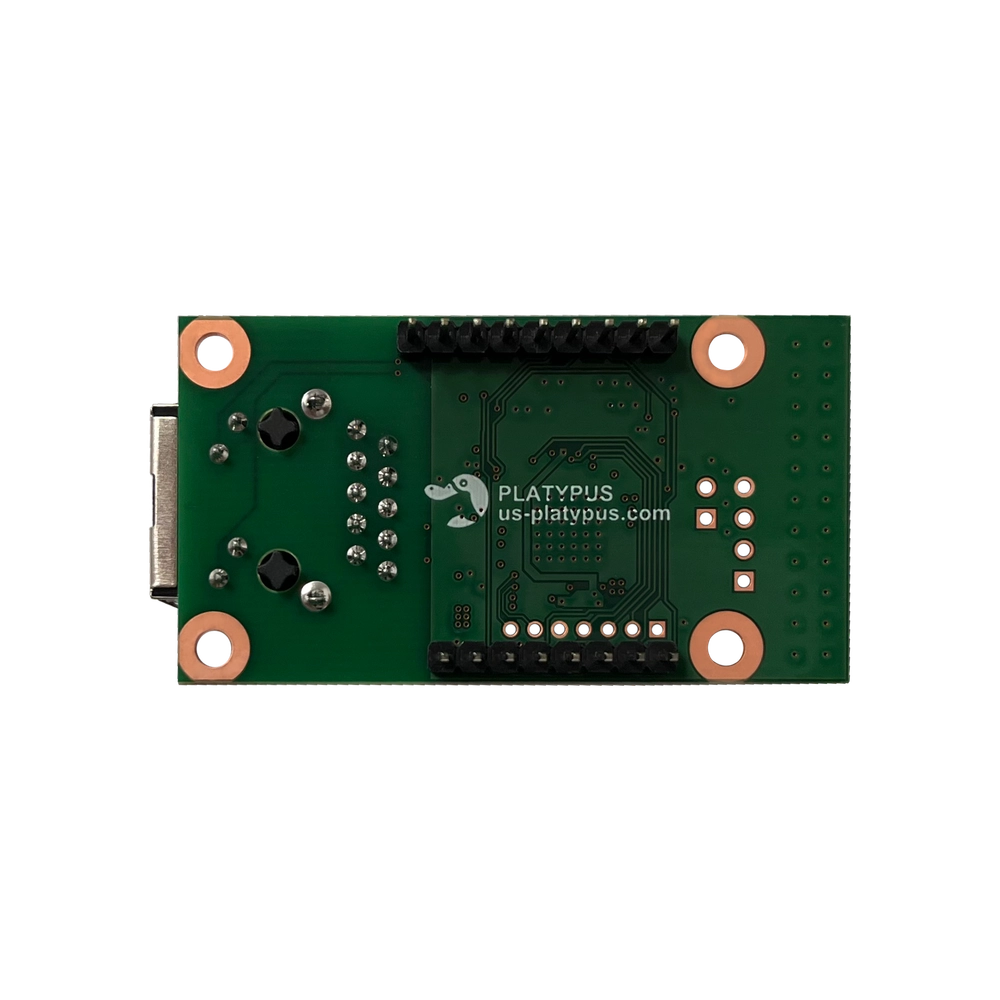

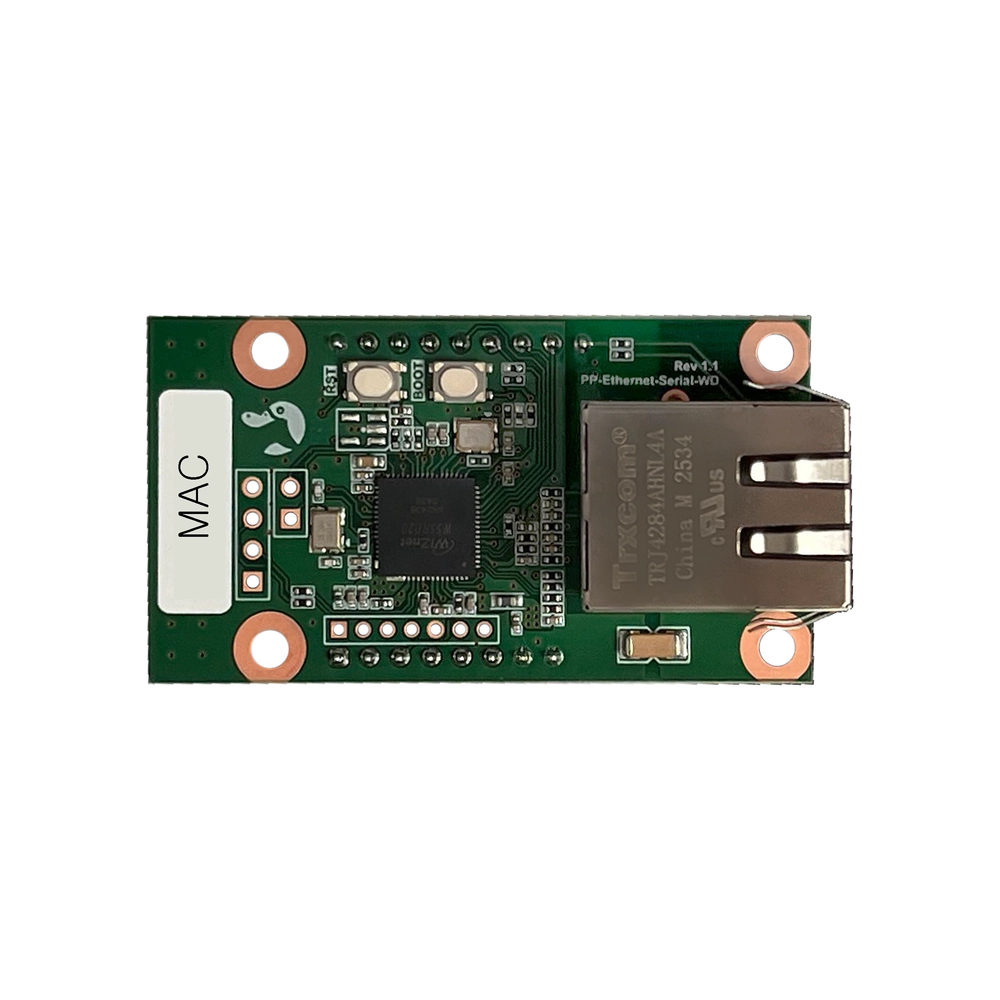

Front/Back
Control
You can control the module without any installation program.
Control is possible via Serial/Ethernet.
The module can be controlled using a Configuration Tool through Ethernet-TCP.
Additionally, it can be controlled via AT-Command through Serial.
